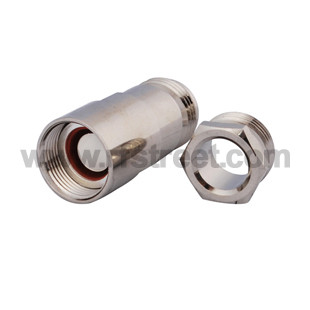

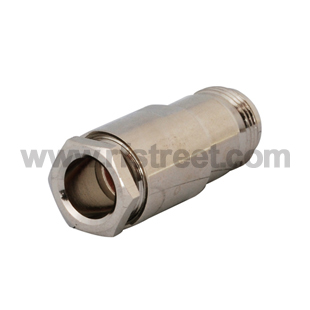

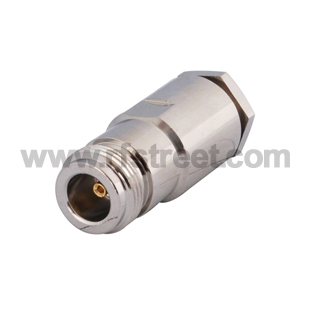

N Female Clamp Type for RG214 Cable
Model: N01-SJ214-41BS01
Description
Product parameters:
| Operating Temperature: | -55 °C to +155°C | Impedance: | 50Ω |
| Frenquency Range: | DC-3GHz | VSWR @ 1GHz: | <1.2:1 |
| IL @ 1GHz: | <0.15dB | Operating Voltage Max (AC): | 1000V peak |
| Center Contact Resistance: | ≦1mΩ | Outer Contact Resistance: | ≦0.2mΩ |
| Insulation Resistance: | ≧5000mΩ | Dutability (Mating): | ≦500 cycles |
| Body / Plating: | Brass / Nickel | Center Contact / Plating: | Brass / Golden |
| Insulator: | PTFE | : |
