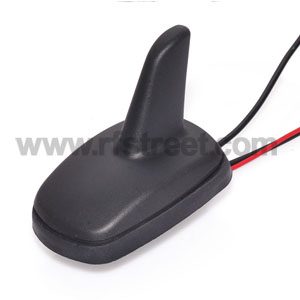

DAB/DAB+/FM/AM car digital radio aerial Roof mount Antenna with Amplified SMA Connector
Model: DB1-0112-D02SP-S01SP-500
    QTY 1+10+100+500+ More
    Price each. $26.00$24.70$23.50$22.33 Ask
    Saving% 0% 5%10%14% Ask
Qty:
Description
Product parameters:

DAB

Frequency:174MHz~240MHz (Band III)

Impedence :50 Ω

Amplification:20dB

VSWR:≤2.0:1

Connector :SMA Male

Cable:5m RG174


FM

Frequency: 87.5-108 MHz

Impedence : 50 Ω

Amplification:20dB

VSWR:≤2.5:1

Connector:DIN Male

Cable: 5m RG174


Voltage : 12v direct feed for both DAB an AM/FM

Current Consumption : 50mA

Package included:5m DAB/FM Car Aerial


Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified.


Listing Suitable for the following DAB radios:

AutoDAB All models

Beat 400 485

Clarion DAB302E

Connects 2 CTDAB-2

Dual DAB CAR1

Goodmans GFMTDBA10

In-Phase All in- car DAB except ProDAB


Cautions:

DAB / FM only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max panel thickness: 2.5mm
