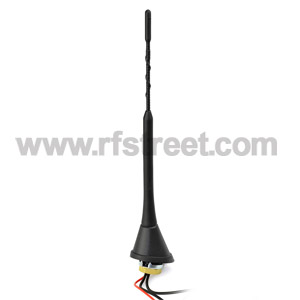

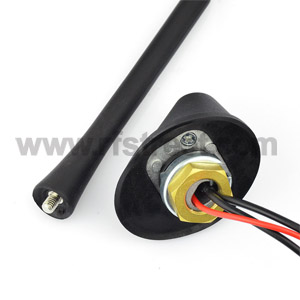

DAB/DAB+car radios aerial Amplified roof mount antenna for Auto DAB
Model: DB1-2415-D02SP-S05RA-500
    QTY 1+10+100+ More
    Price each. $18.00$17.10$16.25 Ask
    Saving% 0% 5%10% Ask
Qty:
Description
Product parameters:

Bar Length: Approx. 23 cm

Base: 58 x 45x 270 mm

Antenna Angle: Approximately 75 °

Supply Voltage:12V DC

Current Consumption:40mA

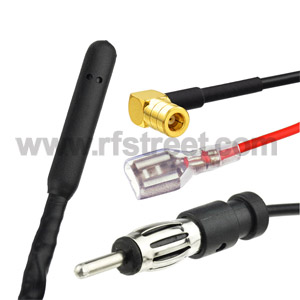

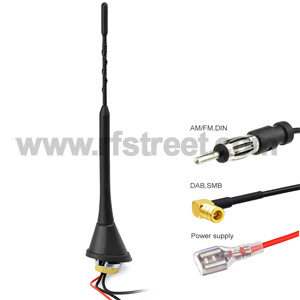

DAB connector: SMA

FM /AM connector:DIN

Mechanical Cable: RG174

Cable Length:5M

Mounting Method:Screw

Impedance: 50 ohm

Working Frequency: 170MHz~240MHz (Band III)

                   1452MHz~1492MHz (L-Band)

Package included:1pcs DAB car Aerial



Advantages:

High quality, top performance, roof mount, amplified DAB/FM/AM car aerial.

Mast easily unscrews for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance).

If your vehicle currently has a built-in-the glass or similar FM/AM aerial, installing the 'DAB/FM/AM bundle will probably improve your FM/AM reception as well.



Listing Suitable for the following DAB radios:

AutoDAB All models

Beat 400 485

Clarion DAB302E

Connects 2 CTDAB-2

Dual DAB CAR1

Goodmans GFMTDBA10

In-Phase All in- car DAB except ProDAB


Cautions:

UNSUITABLE for replacement of bee-sting aerials incorporating GSM, GPS or rear-screen washer jet (some Vauxhalls etc).

Must not be mounted on a panel whose underside is exposed to the elements.

5m DAB cable is captive, i.e. permanently attached.

Max panel thickness: 2.5mm.
