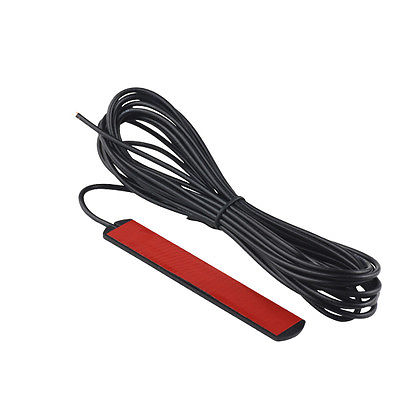

2 dbi GSM Antenna 824 -960Mhz 1710-1990Mhz with FME female
Model: GM3-559-F02SJ-020-300
Description
Product parameters:
| Product Type: | GSM Antenna | Input Impedance: | 50 Ohm |
| Frequency Range: | 824-960Mhz/1710-1990Mhz | V.S.W.R.: | ≤1.5 |
| Gain: | 2 dBi | Polarization: | Vertical |
| Connector: | FME female | Power: | 60 w |
| Antenna Length(mm): | 155*20*5 | Vertical panel Beam Width: | 360° |
| Weight: | 56g | vertical panel Beam Width: | 90° |
| Cable Type: | RG174 | Operating Temperature: | 40 to 85° C |
| Mounting: | Adhesive | Default Length: | 3m |
Optional length:
2 meter
3 meter default
5 meter
GSM ANTENNA
connector: FME male straight please contact us if you need other connector(SMB/SMC/BNC/FME/TNC/MCX /MMCX / Fakra )
The connectors / adapters we can offer you:
