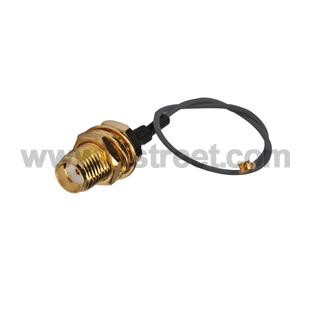

IPX / u.fl to SMA female bulkhead pigtail 1.13 Cable 20CM
Model: AC-S01BH-U04RJ-F13-20
    QTY 1+10+100+500+ More
    Price each. $2.43$2.21$1.97$1.82 Ask
    Saving% 0% 9%19%25% Ask
Qty:
Description
Product parameters:
    Product Type: Extension Cable/Patch Lead  Input Impedance: 50Ω
    Product Series: SMA-U.fl  Cable: IPX 1.13 cable
    One end Connector: SMA female bulkhead straight  Another end Connector: U.fl ( IPX ) female RA
    Optional Length: 20 CM or custom  Working Frequency: 0~6G

IPX cable assemblies can be cut to any length and attached to a variety of RF coaxial connectors. Ideal for ham radio, Wi-Fi radio modems, and 2.4Ghz radio control (R/C) system projects .We operates onsite semi-automatic IPX termination equipment to facilitate quick turn cable assemblies.

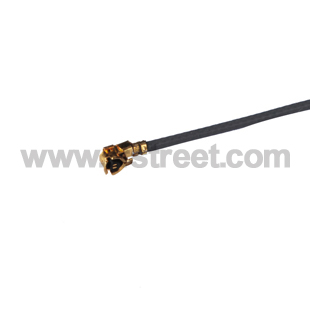

Connector Name :MHF HT IPEX 37 (20351-111R-37) (Compatible to U.FL)
Connector Look: Gold Plated
Mating Way: Snap On

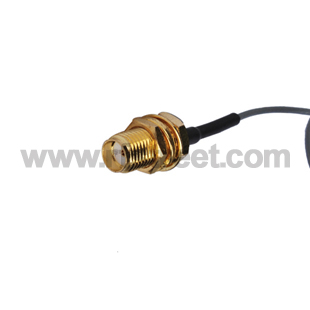

Connector Name: SMA female bulkhead straight

Connector Look: Gold Plated
Mating Way: Screw Type (Thread Coupling)


Typical applications of the IPX series include a variety of wireless technology systems such as GPS, wireless routers, Bluetooth, MIMO, RFID, WiMAX, iBurst, UWB, and Zigbee.


RouterBOARD: 52n
Zcommax: XG-900, XI-625
Ubiquiti: SR4,SR71-E,SR9
Compex: WLM54-SAG,WLM54G-23
Proxim ORiNOCO: Mini-PCI Components
Radio Manufacturer: Radio that use U.FL connector
Senao: NL-5354MP Plus, NL-3054MP Plus, WMP-3000
EnGenius: NL-5354MP Plus Mini-PCI adapter,NL-3054CB Plus Mini-PCI adapter,
                NL-3054MP Plus Mini-PCI Adapter, NL-2511MP Plus Mini-PCI Adapter





Online Custom Pigtail Service Here
