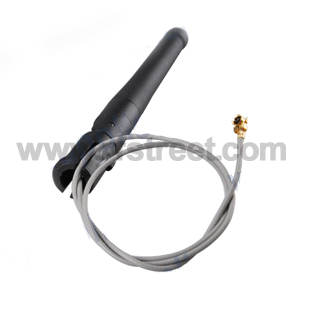

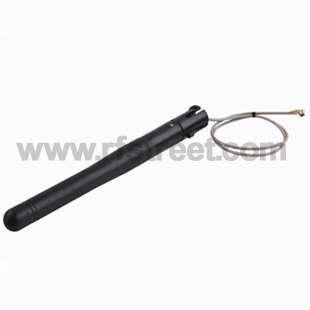

2.4GHz 3dBi Omni WIFI Antenna with extended cable u.fl/IPX end
Model: WA3-889-U04RJ-030-27
Description
Product parameters:
| Frequency（MHz ）: | 2.4GHz | VSWR: | ≤2 |
| Gain-dBi: | 3 | Polarization: | Vertical |
| Directionality: | omni-directional | Diameter(mm): | 5.6mm |
| Antenna Length(mm): | 105mm | Cable Length: | 27CM |
| Connector Type: | IPX/u.fl Connector | Operational Temperature: | -20C to +60C |
| Housing: | Black | Antenna Weight: | 5g |
This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 3dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs.
This flexible antenna features a tilt-and-swivel IPX/u.fl connector. It is suitable as a replacement RF antenna for many access points and radios that are equipped with IPX/u.fl connectors.
Application：
Wireless module and MINI-PCI Card( IEEE 802.11b and 802.11g Wireless LANS )
