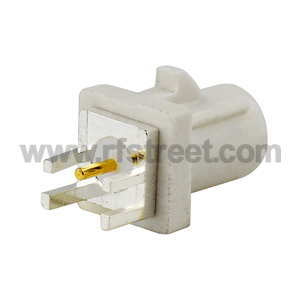

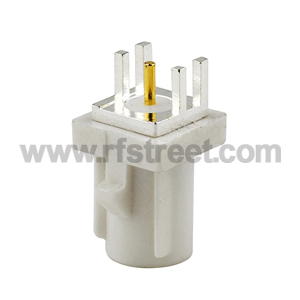

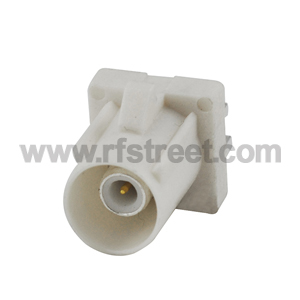

Fakra Plug End Launch PCB mount connector white Radio With Phantom
Model: F03-SPEDM-B
    QTY 1+10+100+500+ More
    Price each. $2.25$2.14$1.91$1.78 Ask
    Saving% 0% 5%15%21% Ask
Qty:
Description
Product parameters:

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly

FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered.



Product Type: Fakra SMB Connector Impedance: 50Ω nominal
Application: wireless and GPS applications Frequency Range: DC-6GHz(optimized DC-4GHz)
Product Type: End Launch PCB mount V.S.W.R: <1.5
Center Contact: Brass (material) Insulation Resistance: 1000 MΩ min
Body: Brass (material) Contact Resistance: <40 m
Center Contact: Gold-plated Dielectric Withstanding Voltage: >800 VRMS(Interface only)
Body: Nickel-plated Temperature Range: -40 / +100℃
Insulator TEFLON Suitable PCB Mount 1.8mm PCB



Application:

1 Automotive
Audio, navigation, infotainment
Bluetooth
GPS

2 Commercial Vehicle
Audio, navigation, infotainment
Bluetooth

3 Consumer
GPS

4 Military/Aerospace
GPS

5 Smart Phones and Mobile Devices
GPS

6 Telecommunications
Bluetooth
GPS tracking, positioning and navigation devices
