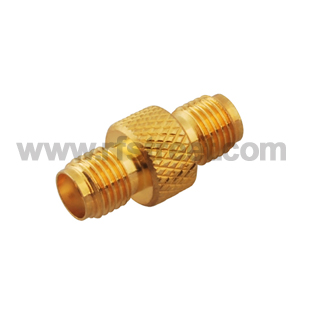

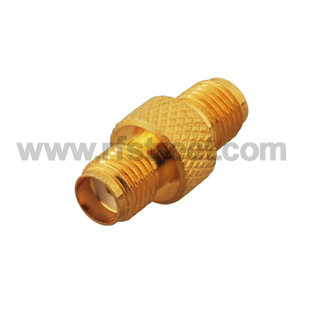

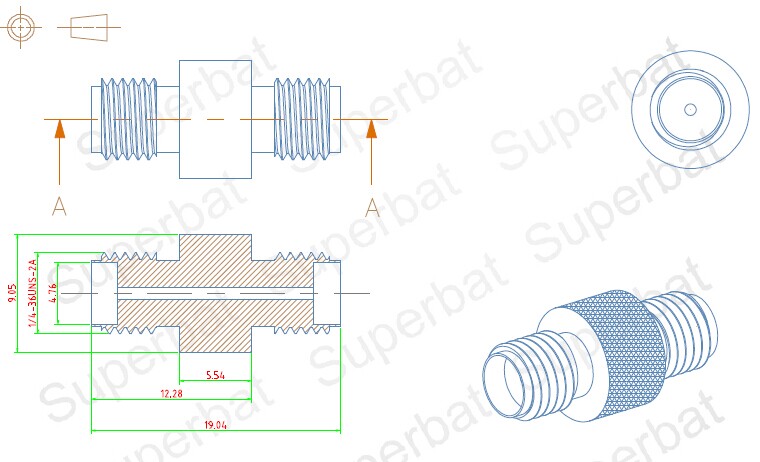

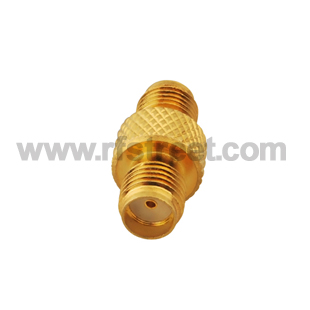

SMA adapter SMA Jack to Jack Straight medium version
Model: AD-S01-JJ-11BS02
Description
Product parameters:
| Product Type: | Coaxial, RF Adapters | Frequency range: | 3GHz |
| Series: | IN-Series SMA | Mounting Type: | Free Hanging |
| Convert From(Adapter End): | SMA Jack | Body Plating: | Goldplated |
| Convert From(Adapter End): | SMA Jack | Contact Plating: | Goldplated |
| Connector Material: | Brass | Pin Material: | Brass |
| Insulator: | PTFE | Impedance: | 50 Ohm |
| VSWR at 1GHz: | <1.1 | Insertion loss at 1GHz: | < 0.50dB |
| Operating Temperature: | -55~+155°C | : |
