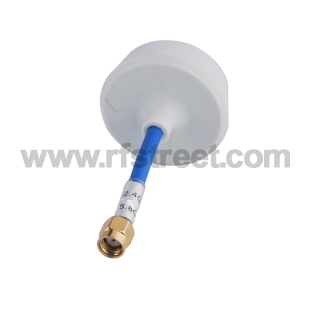

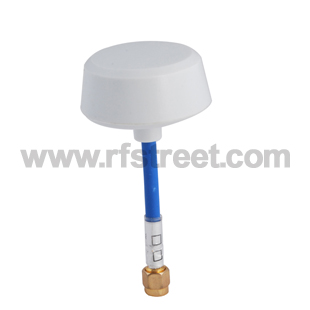

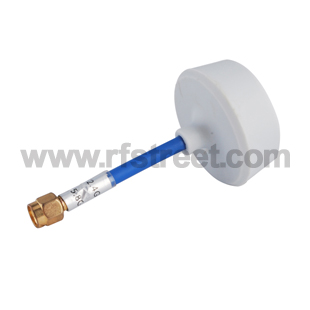

2.4GHz 3dB/5.8Ghz Double frequency Dimensional omni for all WIFI802.11a.b.g.n equipment
Model: WA2-2629-S02SP-030
Description
Product parameters:
| Product Type: | 3G Antenna | Input Impedance: | 50Ω |
| Frequency Range: | 2.4GHz 3DB /5.8GHz 3DB | V.S.W.R.: | 1.5:1max |
| Gain: | 2400-2483Mhz/5150-5850Mhz | Polarization: | Vertical |
| Connector: | RP-SMA male straight | Radiation: | omnidirectional |
| Cable Length(M): | Power: | 50W | |
| Cable Type: | Operating Temperature: | -40C to +60C | |
| Mounting: | Magnetic | Housing: | white |
Product specifications
Optimal Gain:2.4GHz 3DB /5.8GHz 3DB
Frequency Range :2400-2483Mhz/5150-5850Mhz
VSWR:1.5:1max
Polarization:Vertical
Impedance: 50ohms
Connector: RP-SMA male straight(default)
F/Bratio-dB:>=25
Maxlmum input power:>5w
Horizontal Beamwidth:20+/-5
Verticall Beamwidth:20+/-5
Weight:13g
Application
Used for all WIFI802.11a.b.g.n equipment
