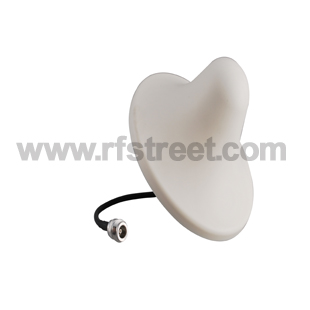

800-2500MHz GSM/GPRS/EDGE/UMTS/HSPA/CDMA/ 3G Ceiling Antenna 3dBi
Model: 3A3-880-N01SJ-030-16
Description
Product parameters:
| Product Type: | 3G Antennas | Input Impedance: | 50Ω |
| Frequency Range: | 824-960MHz / 1710-2500MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 3dBi | Polarization: | Vertical |
| Connector: | N-Type | Radiation: | omnidirectional |
| Cable Length(M): | Power: | 50W | |
| Cable Type: | Operating Temperature: | -40C to +60C | |
| Mounting: | Magnetic | Housing: | white |
800MHz+900MHz+1800MHz+1900MHz+3G+2400MHz WLAN
GSM 850/900: 824 - 960Mhz
GSM 1800/1900:1710 - 2500Mhz
UMTS: 1900 - 2170 MHz
800MHz+900MHz+1800MHz+1900MHz+3G+2400MHz WLAN Ceiling
VSWR ≤1.5
Gain: 3dbi
Max Input power(W): 50
Input Impedance(Ω): 50
Polarization Type: Vertical
Radiation: omnidirectional
Connector Type : N or customized
SMA/SSMB/CRC9/TS9/MS147/FME//MC-Card..and so on.,
please give us notes if the connector is chosen !
Mounting: Magnetic
Housing: white
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c
The connectors / adapters we can offer you:
