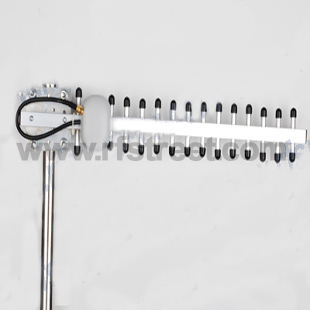

2.4GHz 16dBi Wifi Yagi directional Antenna For 802.11b/g RP SMA
Model: WAY-876-N01SJ-160-20
Description
Product parameters:
| Product Type: | Yagi Antennas | Input I mpedance: | 50Ω |
| Frequency Range: | 2400~2483MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 16dBi | Polarization: | Vertical |
| Connector: | RP-SMA PLUG | Radiation: | directional |
| Cable Length(M): | Power: | 50W | |
| Cable Type: | 50-3 cable | Operating Temperature: | -40C to +60C |
| Mounting: | Housing: | white |
Electrical specifications
Frequency Range-MHz 2400~2483MHz
VSWR ≤1.5
Input Impedance- 50
Gain-dBi 16
Polarization Vertical
F/B ratio-dB
Horizontal Beamwidth 36
Vertical Beamwidth 23
Maximum Power -W 50
Bandwidth-MHz 100
Connector RP-SMA Plug
Mechanical Specifications
Dimensions-cm 46cm
Weight-kg 0.4
Length of the extended cable-cm 20
Mounting Mast Diameter-mm 50-100
