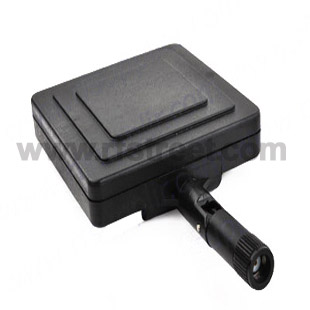

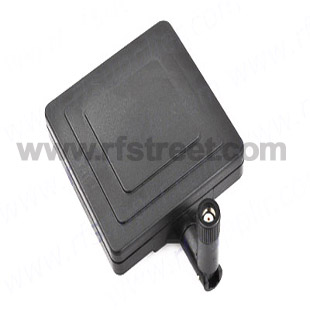

2.4GHz 8dBi directional antenna RP-SMA for wifi wireless network
Model: WA2-1115-S02SP-080
Description
Product parameters:
| Product Type: | Wifi Antenna | Input I mpedance: | 50Ω |
| Frequency Range: | 2.4-2.5GHZ | V.S.W.R.: | ≤2.0 |
| Gain: | 8dBi | Polarization: | Vertical |
| Connector: | RP-SMA PLUG | Radiation: | omnidirectional |
| Cable Length(M): | Power: | 50W | |
| Cable Type: | Operating Temperature: | -40C to +60C | |
| Mounting: | Magnetic | Housing: | Black |
This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 5dBi gain. It is a coaxial sleeve design with an omni-directional pattern.
This flexible antenna features a tilt-and-swivel IPX/u.fl connector. It is suitable as a replacement RF antenna for many access points and radios that are equipped with IPX/u.fl connectors.
specification:
Condition:new
Peak Gain:8dBi
Connector:RP-SMA PLUG
Impedance:50Ω
Polariztion:vertical
max power:5w
frequency:2.4-2.5GHZ
Brandwidth:100MHZ
S.W.R.:<=Q2.0
Application:
ieee802.11b/802.11g Wlan system
Wifi/mimo/bluetooth 2.4GHZ wireless communication system
