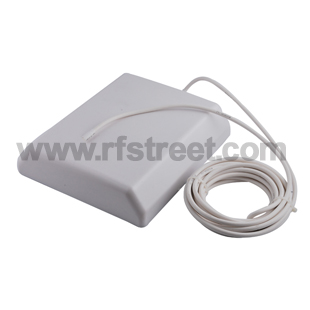

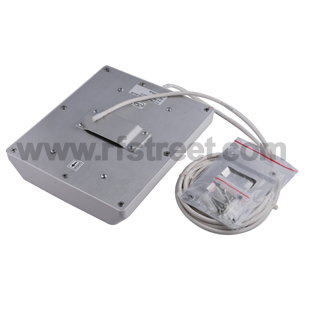

TS9 connector 880-960MHz,1900-2170MHz GSM/GPRS/Edge/CDMA/3G/UMTS panel antenna
Model: 3AP-1757-T04RA-150-500
Description
Product parameters:
| Product Type: | 3G Antennas | Input Impedance: | 50Ω |
| Frequency Range: | 880~960MHz,1900-2170MHz. | V.S.W.R.: | ≤1.5 |
| Gain: | 15dBi | Polarization: | Vertical |
| Connector: | TS9 | Radiation: | omnidirectional |
| Cable Length: | 5m | Power: | 50W |
| Cable Type: | RG58/50-3 cable | Operating Temperature: | -45 to +75℃ |
| Weight: | 0.7kg | Storage Temperature: | -45 to +75℃ |
| Mounting: | Magnetic | Housing: | White |
