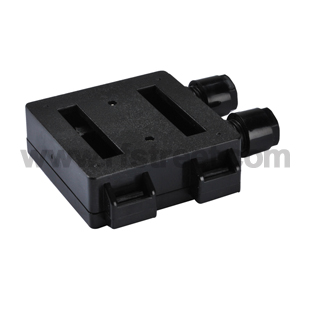

The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.

Main technical parameters
Current for PV Module  3A--6A
Rated Voltage  DC 1000V
Protection Degree  IP65
Power Capacity  60W Solar panel
Diodes Details  1 pcs
Number of terminals  2 rails
Touch Protection Class  Class Ⅱ
Temperature Range  -40°C ~ 85°C
Wire Size

4mm² defalut

2.5mm²
Mounting torque

1.5m
Contact Resistance  ＜9Mω
Flame Class  UL94-V0
Contact Material  H62
Insulation Material  PC
Overall dimensions  60*60*20.5mm
N.W(KG)  0.060KG

Product Features:
1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3.Adopted welding and solder connect way,easy,quick and reliable
