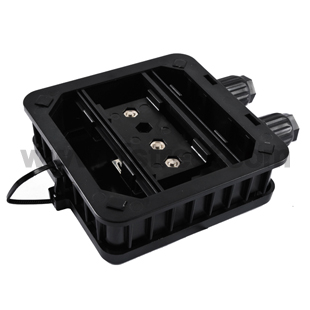

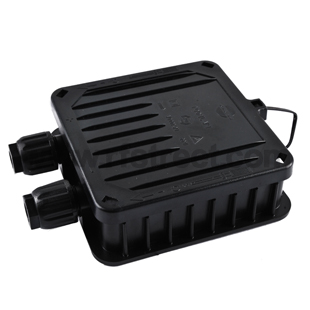

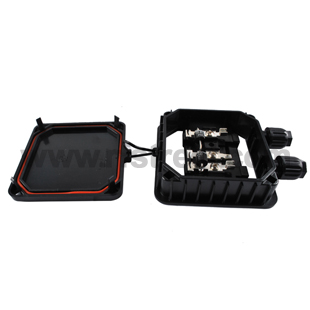

The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.

Main technical parameters
Current for PV Module  10A
Rated Voltage  DC 1000V
Protection Degree  IP66
Power Capacity  120W
Touch Protection Class  Ⅱ
Temperature Range  -40°C ~ 85°C
Diodes Details  2 PCS
Number of terminals  3 rails
Wire Size  4mm² (~10 gauge AWG)
Contact Resistance  <0.5Ohm
Flame Class  UL94-V0
Contact Material  Copper
Insulation Material  PPO
Standard  DIN V VDE 0126-5:2008
Authentication  TUV RoHS
Overall dimensions  94*94*29mm
N.W(KG)  0.099KG

Product Features:
1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3. Excellent sealing performance, waterproof and dustproof rating up to IP66.
4 A variety of connectivity options, can provide 2-4 set of input and output wiring, to meet the multi-bypass the need to use high-power Crystalline silicon PV modules.
5 Products for a variety of backplane, with TPT, TPE, and PYE, etc. back to match
6 Products are sold through TUV and RoHS certification, and obtained two patents for utility model and appearance.
7 High-current,high voltage carrying capacity,suitable for 120W crystalline silicon PV modules
8 Patented On PV-JB001
