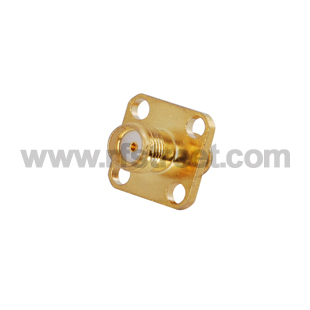

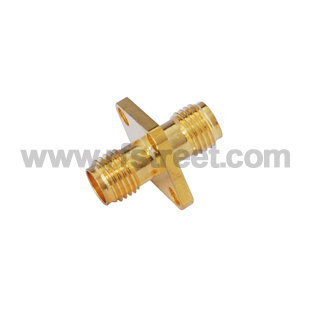

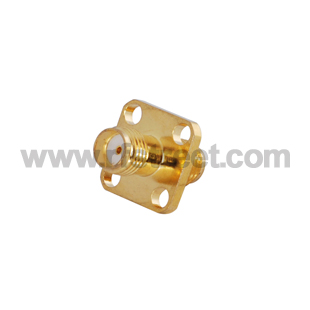

SMA adapter SMA Jack to SMA Jack panel mount short version RF Adapter
Model: AD-S01-JFJ-11BS01
    QTY 1+10+100+500+ More
    Price each. $1.80$1.71$1.62$1.48 Ask
    Saving% 0% 5%10%18% Ask
Description
Product parameters:
    Product Type: Coaxial, RF Adapters  Features: 4-hole panel mount
    Series: IN-Series SMA  Mounting Type: Free Hanging (In-line)
    Convert From(Adapter End): SMA Jack  Body Plating: Goldplated
    Convert From(Adapter End): SMA Jack  Contact Plating: Goldplated
    Style: Straight  Impedance: 50 Ohm

RF adapters cost effective solution,which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.



RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.




Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or reverse polarity.



RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations.



RF adapters in standard and high performance with brass body .The stainless steel body will be customized !

Datasheets:PDF
