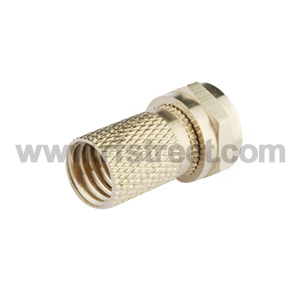

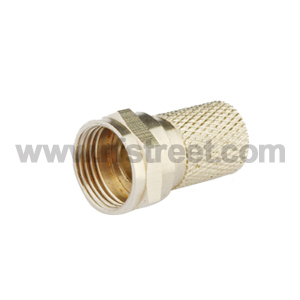

RF Connector F twist-on Plug for LMR300
Model: F01-SPL30-41BS00
    QTY 1+10+100+500+ More
    Price each. $1.00$0.90$0.82$0.73 Ask
    Saving% 0% 10%18%27% Ask
Description
Product parameters:
    Product Series: Product Type: Cable mount
    Application: twist-on  Body Plating: Nickelplated
    Cable Type: KSR300/LMR300  Body Termination: twist-on
    Connector Body Style: Straight  Connector Material: Brass
    Gender: Plug  Contact Plating: Nickel
    Impedance: 50 Ohm  Contact Termination: Solder

F RF connectors are the least expensive, general purpose connectors with non-constant impedance for use at 500 volts or less, and for use with low frequencies to 500Mhz. F type coaxial connectors are widely used in cable TV, MATV,CCTV and related consumer television products.



F connectors are available in a limited selection to fit various cable sizes.

TECHNICAL CHARACTERISTICS
Temp. range.................. ....-40~ +60 ℃
Impedance.................... ...75Ω
Frequency Range..............DC~1GHz
Working Voltage............. ...170V max
Withstand Voltage......... .....500V rms

Contact resistance
Center Contact..............≤10mΩ
Outer Contact...............≤5mmΩ
Insulation resistance ......≥1000 mΩ
VSWR Straight...............≤1.20
Right angle?................≤1.30
Durability(mating)............500 (cycles)



MATERIAL & PLATING
Shell ..............Brass ................Nickel-plated
Contact pin ........brass.................gold -plated
Elastic contact.... beryllium ............gold or silver-plated
Insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated



APPLECABLE STANDARD
IEC 60169-24.
