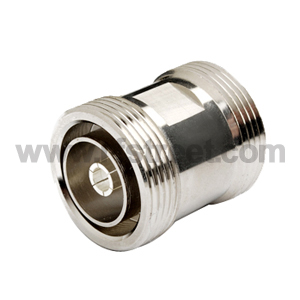

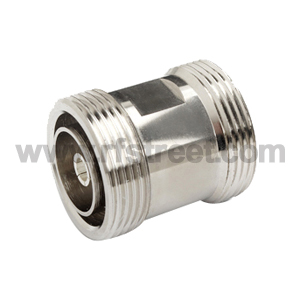

7/16 Din RF Adapter Jack to Jack straight
Model: AD-D01-JJ-44BS00
    QTY 1+50+100+500+ More
    Price each. $11.87$10.68$10.09$9.61 Ask
    Saving% 0% 10%15%19% Ask
Description
Product parameters:
    Product Type: Coaxial, RF Adapters -7/16 DIN  Features:
    Series: IN Series  Mounting Type: Free Hanging (In-Line)
    Convert From (Adapter End): 7/16 DIN Jack  Body Plating: Brass
    Convert To (Adapter End): 7/16 DIN Jack  Contact Plating: Nickelplated
    Style: straight  Impedance: 50 Ohm

7/16 series RF connectors are 50 ohm constant impedance connectors with repeatable electrical performance from DC to 7.5 GHz. They are medium-size rugged connectors and feature good power-handling capability. 7/16 type connectors are designed to minimize signal distortion from intermodulation. Because of this, standard plating is silver. Optional nickel plating should only be specified when low intermodulation is not a concern in your system design.



Technical characteristics
Impedance ........... ..........50ohm
Frequency range........... ...DC to 6GHz
VSWR........... .......... ...... ....≤1.3
Insertion loss........... ...........≤0.35dB,DC-6GHz
Insulation resistance........... .≥1000mΩ
Test voltage........... ...........4000 V rms
Working voltage........... .........2700 v rms
Contact resistance:
1).Centre contact........... .......... 0.4 mΩ
2).Outer conductor........... .........1.5 mΩ



Environmental Data:
Temperature rating: -40 to 85 ℃

Mechanical data:
Mating cycles:≥500



MATERIAL & PLATING
Shell ................ ...... brass ...........Nickel-plated
Inner conductor .......brass ........... Silver-plated
Insulator .... .... .... ....PTFE
Crimping suite .......... copper alloy .......... nicked or gold-plated



APPLECABLE STANDARD
DIN47223;
IEC169-4;
CECC22190.



Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
