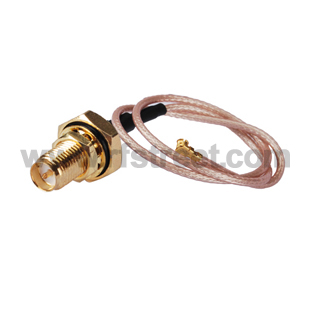

Custom RF cable assembly IPX / u.fl to RP-SMA female bulkhead O-ring Pigtail Cable RG178 10cm
Model: AC-S02BO-U04RJ-178-10
    QTY 1+10+100+500+ More
    Price each. $2.25$2.04$2.00$1.81 Ask
    Saving% 0% 9%11%20% Ask
Description
Product parameters:
    Product Type: Extension Cable/Patch Lead  Input Impedance: 50Ω
    Product Series: SMA-U.fl  cable: RG178 cable
    One end Connector: RP-SMA female bulkhead O-ring straight  Length: 15cm or other
    Other end Connector: U.fl ( IPX )  Working Frequency: 0~6G

IPX cable assemblies can be cut to any length and attached to a variety of RF coaxial connectors. Ideal for ham radio, Wi-Fi radio modems, and 2.4Ghz radio control (R/C) system projects .We operates onsite semi-automatic IPX termination equipment to facilitate quick turn cable assemblies.

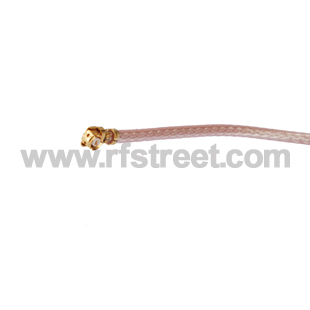

Connector Name :MHF HT IPEX 37 (20351-111R-37) (Compatible to U.FL)
Connector Look: Gold Plated
Mating Way: Snap On

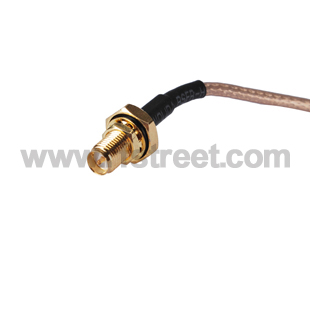

Connector Name: RP-SMA female bulkhead O-ring straight

Connector Look: Gold Plated
Mating Way: Screw Type (Thread Coupling)


Typical applications of the IPX series include a variety of wireless technology systems such as GPS, wireless routers, Bluetooth, MIMO, RFID, WiMAX, iBurst, UWB, and Zigbee.


RouterBOARD: 52n
Zcommax: XG-900, XI-625
Ubiquiti: SR4,SR71-E,SR9
Compex: WLM54-SAG,WLM54G-23
Proxim ORiNOCO: Mini-PCI Components
Radio Manufacturer: Radio that use U.FL connector
Senao: NL-5354MP Plus, NL-3054MP Plus, WMP-3000
EnGenius: NL-5354MP Plus Mini-PCI adapter,NL-3054CB Plus Mini-PCI adapter,
                NL-3054MP Plus Mini-PCI Adapter, NL-2511MP Plus Mini-PCI Adapter
