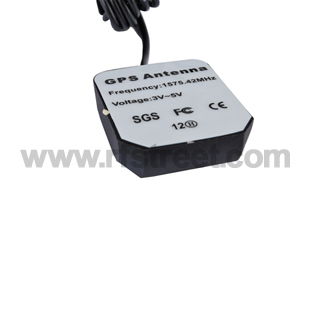

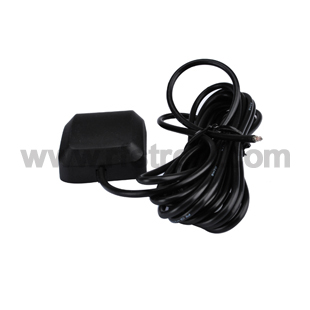

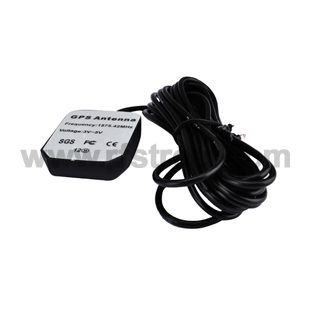

GPS antenna with SMB Jack connector 3M
Model: GA05-300-S05SJ
Price: $ 8.00
    QTY 1+10+100+500+ More
    Price each. $7.60$7.13$6.77$6.43 Ask
    Saving% 0% 6%11%15% Ask
Description
Product parameters:
    Product Type: GPS Antenna  V.S.W.R: 1.5:1
    Center Frequency: 1575.42MHz±3 MHz  Band Width: ±5 MHz
    Cable: RG174  Impendence: 50 ohm
    Cable length: 3M  Mounting: Magnetic base

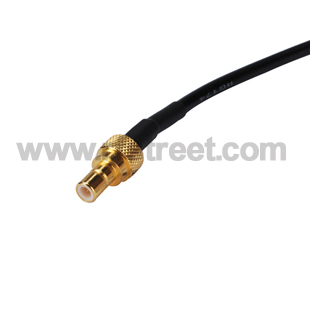

    Connector: SMB Jack  Housing: Black

    Characteristic:
    (i) Dieletric Antenna
    Center Frequency 1575.42MHz±3 MHz
    V.S.W.R 1.5:1
    Band Width ±5 MHz
    Impendence 50 ohm
    Peak Gain >3dBic Based on 7×7cm ground plane
    Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
    Polarization RHCP



    (ii) LNA/Filter
    LNA Gain (Without cable) 28+/-3dB
    Noise Figure 1.5dB Typ.
    Filter Out Band Attenuation (f° =1575.42MHz)
    7dB Min f0+/-20MHZ ;
    20dB Min f0+/-50MHZ;
    30dB Min f0+/-100MHZ
    V.S.W.R <2.0
    DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
    DC Current 5mA /11mA/15mA Max



    (iii)Mechanical
    Weight <100gram
    Size :48x39x16mm
    Cable :RG174 3 meter / Contact us for other length
    Connector :SMB Jack default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle
    please give us some notes if the antenna connector is chosen.Tks!
    Mounting Magnetic base
    Housing Black


    (iv)Environmental
    Working Temp -40℃~+85℃
    Storage Temp. -45℃~+100℃
    Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
    Relative Humidity 95% non-condensing
    Weatherproof 100% Waterproof


GPS antenna with SMB Jack connector compatibility:
Bmw
: MK1 Navigation System, MK2 Navigation System, MK3 Navigation System, MK4 Navigation System,
Eagle Electronics: AccuMap, Eagle View, Journey Status, UltraMap,
Furuno: GN-80 GPS Receiver AU-12-5S,
Lowrance: LMS-160 MAP, Accumap 12, AccuMap GPS, Accumap Sport, AccuNav Sport, AirMap, AirMap 1000, AirMap 2000C, AirMap 300, EANT-1, External GPS Antenna RAA-4, Global Map 1600, GlobalMap 12, GlobalMap Sport, GlobalNav 310, GlobalNav Sport, iWay 500C, iWay 600C, LANT-1,
Magellan: Meridian Color, RoadMate 300, RoadMate 360, RoadMate 500, Roadmate 700, RoadMate 760,
Polaroid: MGM-0550 Portable GPS with DVD,
Thales Navigation: ProMark 2, ProMark 3.
