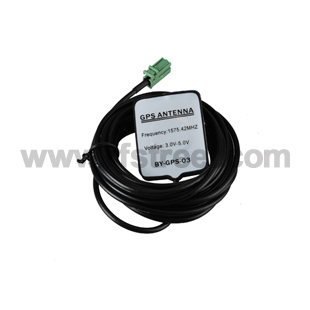

GPS Navigation Antenna-Mercedes Command Alpine GT5-1S
Model: GA03-300-GT5GSJ
    QTY 1+10+50+100+ More
    Price each. $10.00$9.50$9.03$8.57 Ask
    Saving% 0% 5%10%14% Ask
Description
Product parameters:
    Product Type: GPS Antenna  V.S.W.R: 1.5:1
    Center Frequency: 1575.42MHz±3 MHz  Band Width: ±5 MHz
    Cable: RG174  Impendence: 50 ohm
    Cable length: 3M  Mounting: Magnetic base
    Connector: HRS GT5-1S Plug default  Housing: Black

Characteristic:
(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP



(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max



(iii)Mechanical
Weight <100gram
Size :45x36x14mm
Cable :RG174 3 meter / Contact us for other length
Connector :HRS GT5-1S Plug default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black



(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof



(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity



(VI) APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Vehicles /Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigation



GPS antenna with HRS GT5-1S compatibility:
Alpine Navigations system (Not for Alpine nve-871a)
Acura Navigation
Alpine Navigation
Clarion Navigation
Ford 9000 VNR Navi
Ford Denso 7 Zoll Touchscreen Navi
Grundig Navigation
Honda Navigation
Magnetic
Marelli
Mercedes Comand Serie ( A 203, 208, 210, 230, 220, 820, 463 )
Nissan XANAVI
Panasonic
Pioneer ( AVIC 505 )
Suzuki Navigation
Volvo Hu 1205
Kenwood DDX5022
Kenwood DDX5032
Kenwood DDX7032
Kenwood DDX812
Kenwood DNX5120
Kenwood DNX7120
Kenwood DNX7220
Kenwood DNX7320
Kenwood DNX8120
