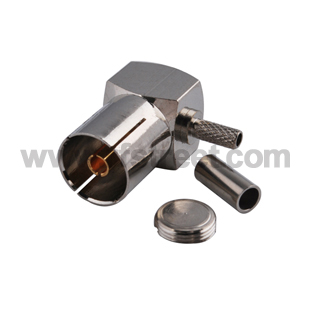

TV Crimp Jack Right Angle RF Connector for RG316
Model: T03-RJ316-41BS00
    QTY 1+10+100+500+ More
    Price each. $1.89$1.80$1.70$1.50 Ask
    Saving% 0% 5%10%21% Ask
Description
Product parameters:
    Product Series: TV  Product Type: Cable mount
    Body Plating: Nickelplated  Body Termination: Crimp
    Cable Type: RG316,RG174,LMR100,RG188  Connector Body Style: Right Angle
    Connector Material: Brass  Contact Plating: Nickel
    Contact Termination: Solder  Gender: Jack
    Impedance: 50 Ohm  Insulator: Teflon

TV connector are mainly used in TV video link a product quality practical meet method is simple and clear family entertainment television station and so on hotel meeting the indispensable parts.



Technology Parameter:
Electrical characteristic
Characteristic Impedance  50 Ω
Frequency Range DC-11GHz
Insertion Loss    DC-1GHz ≤0.1dB
                 1-2 GHz  ≤0.14dB
                 2-3 GHz  ≤0.16dB

VSWR           DC-1GHz ≤1.06
              1-3 GHz  ≤1.1

Dielectric Withstanding Voltage   2500 VAC
Dielectric Resistance  5000MΩ
                               Inner Conductor  1mΩ
Contact Resistance             Outer Conductor  0.25mΩ
Durability    500 Cycles
Working Environment
Temperature Range  -55---+155 °C
Water-Proofing   IP68



MATERIAL & PLATING
Shell.................Brass ...................Nickelplated
Inner conductor.......Beryllium or tin brass ....Nickelplated
Insulator ............PTFE
Crimping suite........Copper alloy ..............Nickelplated



Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
