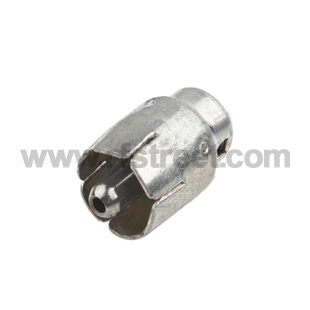

RCA Plug RF Connector Solder for RG174 RG316
Model: R01-SP316-44BS00
    QTY 1+10+100+500+ More
    Price each. $1.78$1.60$1.51$1.42 Ask
    Saving% 0% 10%15%20% Ask
Description
Product parameters:
    Product Series: RCA  Product Type: Cable mount
    Body Plating: Nickelplate  Body Termination: Crimp
    Cable Type: RG174 RG316  Connector Body Style: Straight
    Connector Material: Brass  Contact Plating: Gold
    Contact Termination: Solder  Gender: Plug
    Impedance: 50 Ohm  Insulator: Teflon

RCA ,the standard video input connector, subminiature devices that provide repeatable electrical performance from DC to 7.5GHz
RCA which are widely used to connect audio and video components .It use on every TV, DVD player, stereo amplifier, set-top box and countless other devices.



Technical characteristics
Impedance: 50Ω
Temperature Range:55~+155 ℃
Frequency Range: DC~7.5GHz
Working Voltage: 2700V rms
Withstanding Voltage: 4000V  r.m.s at sea level
Contact resistance:
Center contact   ≤0.4 mΩ
Outer contact    ≤ 1.5 mΩ
Insulation resistance : ≥ 10000 M Ω
Center conductor retention force  ≥6N
Durability(mating) ≥500 (cycles)
Insulator: PTFE
Body:  brass & gold plated
Pin contact:  brass &  gold plated
Socket contact: copper & gold plated.
Crimp ferrule: copper  &  nickel or gold plated
Resilient contact: beryllium-copper & gold plated.



Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
