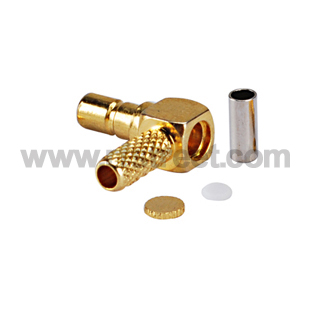

SSMB Crimp Jack Right Angle for LMR100 RF Connector
Model: S10-RJ316-11BS00
    QTY 1+10+100+500+ More
    Price each. $2.00$1.80$1.62$1.46 Ask
    Saving% 0% 10%19%27% Ask
Description
Product parameters:
    Product Series: SSMB  Product Type: Cable mount
    Application: Crimp  Body Plating: Goldplated
    Cable Type:: RG174,RG188A,RG316,LMR100  Body Termination: Soler
    Connector Body Style: Right Angle  Connector Material: Brass
    Contact Plating: Gold  Contact Termination: Solder
    Gender: Jack  Impedance: 50 Ohm
    Dielectric: Teflon  Temp.range: -65~ +165℃

SSMB RF connectors are microminiature devices that provide repeatable electrical performance from DC to 3GHz. The standard mating design for SSMB series connectors are similar to SMB and SMC but with size reduced approximately one-third. This makes them ideal for use in confined areas where the use of wrenches is not practical. They are lightweight, easy to connect and disconnect, vibration-proof and highly reliable. They are best suited for use with cables in the range of .070" to .120" diameters, such as RG-178, RG-174, and RG-316. Because of their small-size and tight tolerance, finishes other than gold plating are not recommended.



SSMB type connectors have gained wide acceptance and usage in military radio systems, where small size is needed for miniaturization but ruggedness and reliability are very important.




Impedance 50 ohm
Frequency Range  DC to 3 GHz
Dielectric Withstanding Voltage (at sea level, in V rms, 50 Hz)  500 max
Working Voltage(at sea level, in V rms, 50 Hz)  250 max
Insulation Resistance  1000 M min
RF Leakage  -70 dB min @ 2-3 GHz
VSWR  Straight          Right Angle
 1.22 max @ 0-1.0 GHz  1.50 max @ 0-1.0 GHz
 1.35 max @ 0-3.0 GHz  1.63 max @ 0-3.0 GHz
Contact Resistance  Center Contact  Outer Contact
                        5 m max    2.5 m max
Mating  Snap-on coupling
Durability  500 matings max
Engagement/Disengagement Force 6 lbs max engagement/1 lb min disengagement
Contact Captivation   2 lbs min axial force
Temperature Range  -55C to +155C



                        Material          Plating
Connector Body   Brass per QQ-B-626     Gold/Nickel
Center Contact  Male  Brass per QQ-B-626  Gold
        Female  Beryllium Copper per QQ-C-530  Gold
Insulator  Teflon
Gasket Silicone Rubber
Crimp Ferrule  Annealed Copper per WW-T-799  Same as body
