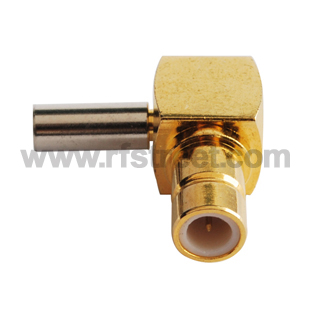

RF Connector SMB Jack Right Angle Crimp Attachment for RG316 75 Ohm
Model: S06-RJ316-11BS00
    QTY 1+10+100+500+ More
    Price each. $2.20$1.98$1.78$1.65 Ask
    Saving% 0% 10%19%25% Ask
Description
Product parameters:
    Product Series: SMB  Product Type: Cable mount
    Application: Crimp  Body Plating: Goldplated
    Cable Type:: RG316 ,RG174,LMR100  Body Termination: Soler
    Connector Body Style: Right Angle  Connector Material: Brass
    Contact Plating: Gold  Contact Termination: Solder
    Gender: Jack  Impedance: 75 Ohm
    Dielectric: Teflon  Temp.range: -65~ +165℃

SMB RF connectors are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 4 GHz. The SMB family of connectors provides a means of quick connect and disconnect through a snap-on type coupling. This makes them useful in areas that are inaccessible to normal mating action. They are best suited for use with cables in the range of .070" to .120" diameters, such as RG 178, RG 174, RG 316. The series is similar in size to SMC connectors but is generally used at a lower frequency. SMB type connectors are designed to conform to MIL-C-39012 specifications.



Its smaller physical size and snap-on coupling make the SMB an ideal general purpose connector where packaging density, ease of mating/unmating and economy are prerequisites. Typical applications for SMB connectors are telecommunications, test equipment, instrumentation, and GPS.



Technical characteristics
 Temp.range................-65~ +165℃
 Impedanec.................50Ω,75Ω
 Frequency Range...........DC~4GHz(50Ω) 0~2GHz(75Ω)
 Working Voltage...........335V max
 Withstand Voltage.........1000V rms
 Contact resistance
 Center Contact............≤6mΩ
 Outer Contact.............≤1mΩ
 Insulation resistance ....≥1000 mΩ
 VSWR Straight.............≤1.25
      Right angle .........≤1.45
 Durability(mating)........≥ 500 (cycles)




MATERIAL & PLATING
shell ..............brass ...............goldplated
contact pin ........brass................goldplated
socket............. beryllium........... goldplated
elastic contact.... beryllium........... goldplated
insulator ..........PTFE
crimping suite..... copper alloy......... nickel or goldplated
0-ring sealing .....6146 silastic



APPLECABLE STANDARD
MIL-C-39012;
CECC 22130;
IEC 60169-10



Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
