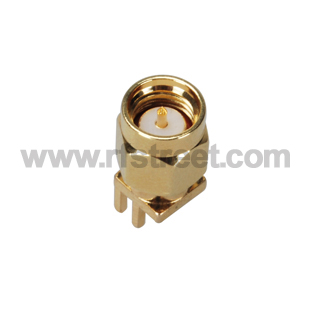

RF SMA Connector End Launch Plug vertical PCB Mount 1.3mm, 0.051”
Model: S01-SPEDM-11BS00
    QTY 1000+ More
    Price each. $1.10 Ask
    Saving% 0% Ask
Description
Product parameters:
    Product Series: SMA  Product Type: PCB Mount
    PCB size: End Launch PCB Mount 1.3mm, 0.051”  Body Plating: Goldplated
    Gender: Plug  Connector Body Style1: Straight
    Insulator: Teflon (PTFE)  Connector Material: Brass
    Impedance: 50 Ohm  Contact Plating: Goldplated

SMA connectors, short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz. SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community. LTI SMA connectors are designed to conform to MIL-C-39012 specifications.





Electrical:



Temperature Range: -65 +165

Impedance: 50 ohm

Frequency range : Flexible cable DC12.4GHz / Semi-rigid cable (018GHz)

Working Voltage: 335V max

Insulation resistance:≥5000 mΩ

Withstand Voltage.:1000V rms

Contact resistance : Center Contact...≤3mΩ / Outer Contact. .≤2mΩ

Insertion loss : ≥0.15 dB/6GHz
VSWR  Straight.    :≤1.10+0.002f
                             ≤1.05+0.001f
          Right angle : ≤1.20+0.003f
                              ≤1.10+0.001f
 Durability(mating)..:≥ 500 (cycles)





APPLECABLE STANDARD


MIL-C-39012;
CECC 22110;
IEC 60169-15


Datasheets:






Offer custom:


If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
