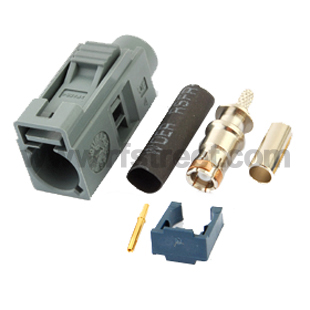

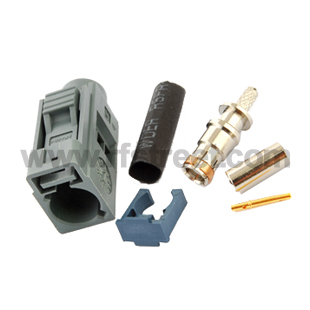

Fakra connector crimp Jack Grey Remote control keyless entry RF Connector
Model: F03-SJ316-G
    QTY 1+10+100+500+ More
    Price each. $2.15$1.94$1.83$1.72 Ask
    Saving% 0% 10%15%20% Ask
Description
Product parameters:
    Product Type: Fakra Connector  Impedance: 50Ω nominal
    Application: wireless and GPS applications  Frequency Range: DC-6GHz(optimized DC-4GHz)
    Suitable cable: RG316 RG174 LMR100  V.S.W.R: <1.5
    Center Contact: Brass  Insulation Resistance: 1000 MΩ min
    Body: Brass  Contact Resistance: <40 m
    Center Contact: Gold-palted  Dielectric Withstanding Voltage: >800 VRMS(Interface only)
    Body: Nickel-plated  Temperature Range: -40 / +100℃

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly



FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered



Application:



1 Automotive

Audio, navigation, infotainment

Bluetooth

GPS



2 Commercial Vehicle

Audio, navigation, infotainment

Bluetooth



3 Consumer

GPS



4 Military/Aerospace

GPS



5 Smart Phones and Mobile Devices

GPS



6 Telecommunications

Bluetooth

GPS tracking, positioning and navigation devices
