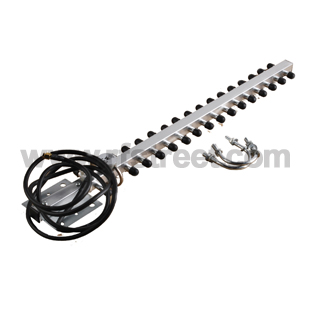

2.4GHz 16dBi Wifi Yagi Antenna Wireless-G For 802.11b/g/n RP-SMA
Model: WAY-1398-S02SP-160-500
Description
Product parameters:
| Product Type: | Wifi Antenna | Input impedance: | 50Ω |
| Frequency Range: | 2400~2483MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 16 | Polarization: | Vertical |
| Connector: | RP-SMA Plug | Radiation: | directional |
| Cable Length(M): | 500 CM | Power: | 50W |
| Weight: | 0.5kg | Operating Temperature: | -45 to +85℃ |
| Product Name | Yagi Antennas |
| Electrical specifications | |
| Frequency Range-MHz | 2400~2483MHz |
| VSWR | ≤1.5 |
| Input Impedance-Ω | 50 |
| Gain-dBi | 16 |
| Polarization | Vertical |
| F/B ratio-dB | |
| Horizontal Beamwidth -° | 36 |
| Vertical Beamwidth -° | 23 |
| Maximum Power -W | 50 |
| Bandwidth-MHz | 100 |
| Connector | |
| Mechanical Specifications | |
| Dimensions-mm | |
| Weight-kg | 0.5 |
| Mounting Mast Diameter-mm | Φ50-100 |
| Cable length- cm | 500cm |
