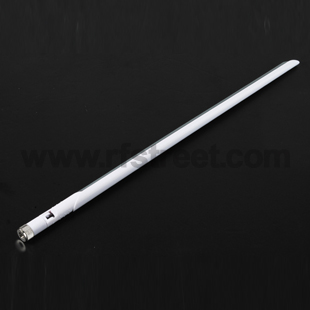

2.4GHz 11dBi Omni WiFi antenna RP-SMA Plug for wireless router and WLANs
Model: WA2-1551-S02SP4-110
Description
Product parameters:
| Product Type: | Wifi Antenna | Input impedance: | 50Ω |
| Frequency Range: | 2.4GHz | V.S.W.R.: | ≤2.0 |
| Gain: | 11 | Polarization: | Vertical |
| Connector: | RP-SMA Plug | Radiation: | omnidirectional |
| Weight: | 53g | Power: | 50W |
| Mounting: | Magnetic | Operating Temperature: | -45 to+85℃ |
This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 9dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs,

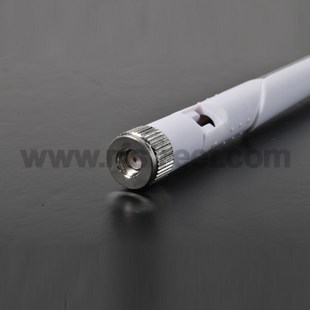

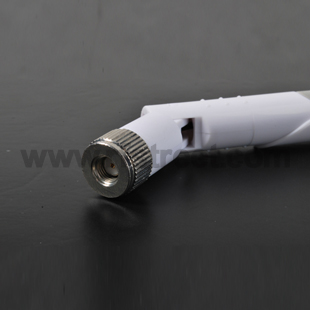

This flexible antenna features a tilt-and-swivel reverse-polarity SMA Jack connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with reverse-polarity SMA Jacke connectors including D-LinkR, LinksysR WET11 and others.
for wireless router and WLAN PCI card
Weight: 53g
Length: 380mm
802.11b, 802.11g
Flexible WiFi antenna
Tilt and swivel design
