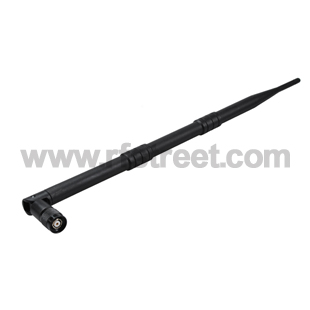

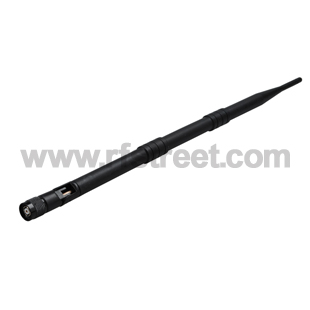

2.4GHz 9dBi Omni WiFi Folding Antenna RP TNC For WRT54G WAP54G
Model: WA2-1022-T02SP-090
Description
Product parameters:
| Product Type: | Wifi Antenna | Input impedance: | 50Ω |
| Frequency Range: | 2.4 GHz | V.S.W.R.: | ≤1.8 : 1 |
| Gain: | 9 | Polarization: | Vertical |
| Connector: | RP TNC | Radiation: | omnidirectional |
| Weight: | Power: | 50W | |
| Mounting: | Magnetic | Operating Temperature: | -45 to+85℃ |
9dBi gains
Dimension: 38cm tall when fully extended; 35cm when bottom joint is turned to right-angle.(fully extended means that the joint is straight rather than right-angle)
Diameter: 1.5cm

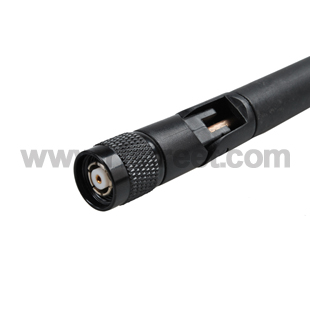

RP-TNC Female Folding connector
802.11b and 802.11g: Interoperable with WiFi (WECA) certified equipment
Polarization Linear Vertical
Light Weight
Omnidirectional Antenna
Polarization Vertical
VSWR ≤1.8 : 1
