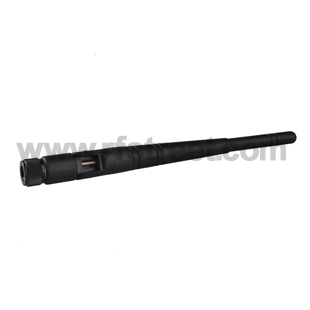

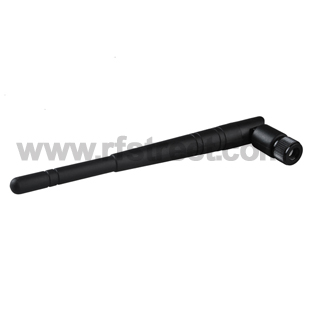

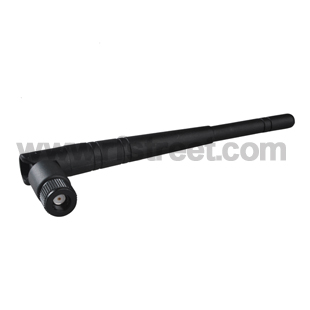

2.4GHz 5dBi Omni WIFI Antenna RP-SMA for wireless router
Model: WA2-883-S02SP-050
Description
Product parameters:
| Product Type: | Wifi Antenna | Input impedance: | 50Ω |
| Frequency Range: | 2.4 GHz | V.S.W.R.: | ≤2.0 |
| Gain: | 5 | Polarization: | Vertical |
| Connector: | RP-SMA plug (soctet pin) | Radiation: | omnidirectional |
| Weight: | 18g | Power: | 50W |
| Mounting: | Magnetic | Operating Temperature: | -45 to+85℃ |
This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 5dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs
This flexible antenna features a tilt-and-swivel reverse-polarity SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with reverse-polarity SMA connectors including D-LinkR, LinksysR WET11 and others.
for wireless router and WLAN PCI card
Diameter: 11.48mm
Length:138mm
weight:18g
802.11b, 802.11g
RP-SMA plug (soctet pin) Connector
Flexible WiFi antenna
Tilt and swivel design
