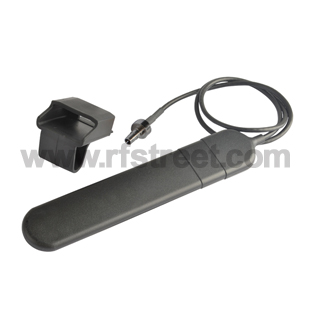

Product parameters:
Product Type: | Mobile Broadband Antenna | Input impedance: | 50Ω |
Frequency Range: | 850/1900/900/1800/2100/2170Mhz | V.S.W.R.: | ≤1.5 |
Gain: | 13 dbi | Polarization: | Vertical |
Connector: | CRC9 male | Radiation: | omnidirectional |
Cable Length: | 46cm | Power: | 60W |
Cable Type: | RG174 | Operating Temperature: | -45 to +75℃ |
Weight: | 0.081kg | Storage Temperature: | -45 to +75℃ |
Mounting: | Housing: | Black |
Frequencies: 850/1900/900/1800/2100/2170Mhz
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 800/1900 MHz
VSWR ≤1.5
Enhance and maintain excellent signal quality

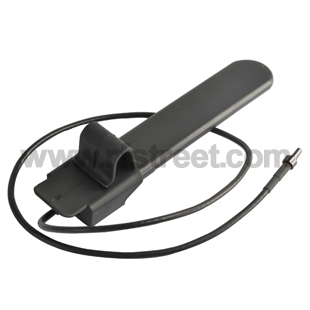

Clip mount allows you to easily attach and remove to back or side of laptop lid/screen
Usable indoor or outdoors
Quick, simple installation, no software required
connector:CRC9 or customized
SMA/SSMB/CRC9/TS9/MCX/FME/MC-Card/MS-147..and so on.,please give us notes if the connector is chosen !

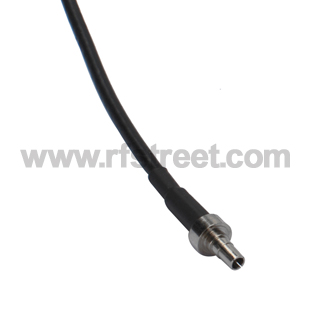

CRC9 connector/ adapter for HUAWEI USB Modems
SSMB connector for huawei E800 E870
SSMB connector for Sierra Wireless AirCard
MC-LUCENT connector for Option Wireless
MCX male for Ericcson W30/W35 data router
MMCX male for Ericsson MC95/MC99/RLMC352
SMA male for Ericsson W21
Cable length:46cm, RG174
Antenna Weight:81g
Instructions:
Power off wireless device
Plug connector into antenna port on wireless device
Power on wireless device
For best performance place antenna as close to exterior window as possible
Installation Tips:
Antenna should be mounted vertically to maximize performance
Antenna should not be mounted against metal
The connectors / adapters we can offer you:
CRC9 connector/ adapter /Antenna for Huawei USB modem or other modem with CRC9
CRC9 connector/ adapter /Antenna for HUAWEI PCMCIA Card
CRC9 connector/ adapter /Antenna for HUAWEI Express Card ,
