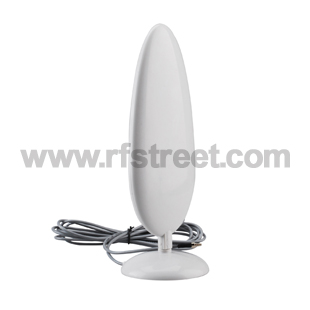

20dbi 3G Antenna CRC9 for HUAWEI equipmen or ZTE usb modem
Model: 3A1-2581-C01SP-200-300
Description
Product parameters:
| Product Type: | 3G ZTE Antenna | Input impedance: | 50Ω |
| Frequency Range: | 1880-1920/1990-2170MHZ | V.S.W.R.: | ≤1.5 |
| Gain: | 20 dbi | Polarization: | Vertical |
| Connector: | CRC9 male | Radiation: | omnidirectional |
| Cable Length(M): | 3m | Power: | 60W |
| Cable Type: | RG174 | Operating Temperature: | -45 to +75℃ |
| Weight(kg): | 0.193kg | Storage Temperature: | -45 to +75℃ |
| Mounting: | Housing: | Black |
