Product parameters:
| Product Type: | 3G Antenna | Input impedance: | 50Ω |
| Frequency Range: | 850-960/1710-2170MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 3.5 dbi | Polarization: | Vertical |
| Connector: | CRC9 | Radiation: | omnidirectional |
| Cable Length: | 3m | Power: | 50W |
| Cable Type: | RG174 | Operating Temperature: | -45 to +75℃ |
| Weight: | 0.042kg | Storage Temperature: | -45 to +75℃ |
| Mounting: | Magnetic | Housing: | Black |

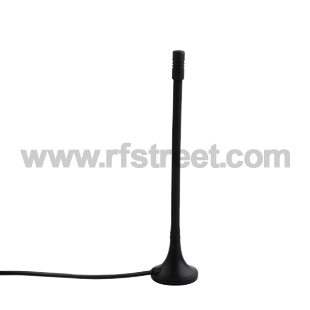

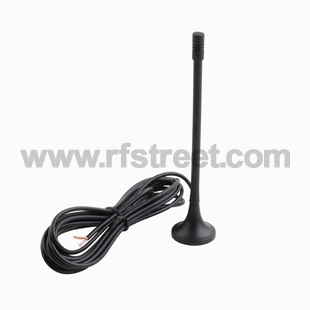

3.5DBI 3G Antenna to suit most Huawei modems. This antenna will improve reception of 3G Broadband
Great for travelling or where you are not sure of the location of the mobile phone
Mast, small size, stable and reliable performance.
Magnetic base can be fitted to cars, caravans, portacabins quickly and easily.
stand for avoiding the abrasion of your table.
Frequency Range(MHz)850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Gain: 3.5dbi
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization Type: Vertical
Antenna Length(mm): 140
Cable Length(mm): 3M
Cable Type: RG174 as default
Connector Type: CRC9 or customized
SMA/SSMB/CRC9/TS9/MS147/MCX/FME/MC-Card..and so on.,please give us notes if the connector is chosen !
Mounting: Magnetic
Housing: Black
Weight:42g
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c
The connectors / adapters we can offer you:
CRC9 connector/ adapter /Antenna for Huawei USB modem or other modem with CRC9
CRC9 connector/ adapter /Antenna for HUAWEI PCMCIA Card
CRC9 connector/ adapter /Antenna for HUAWEI Express Card ,
