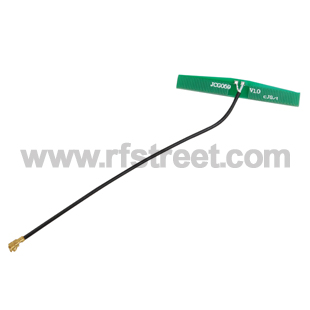

2 dbi GSM Internal Antenna 824-960MHz 1710-1990MHz IPX connector
Model: GM3-1211-U04RJ-020-10
Description
Product parameters:
| Product Type: | Antenna | Input impedance: | 50 |
| Frequency Range: | 824-960MHz/1710-1990MHz | V.S.W.R.: | ≤2.0 |
| Gain: | 2 dbi | Polarization: | Vertical |
| Bandwidth: | ±5MHz | Directionality: | omnidirection |
| Connector: | IPX/u.fl | Power: | 60 w |
| Cable Length: | IPX 10cm | Vertical panel Beam Width: | 360° |
| Weight: | vertical panel Beam Width: | 90° | |
| Dimension: | 47x8x1mm | Operating Temperature: | -40 to 85° |
