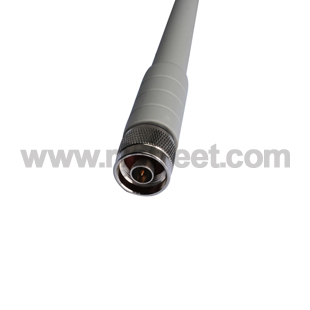

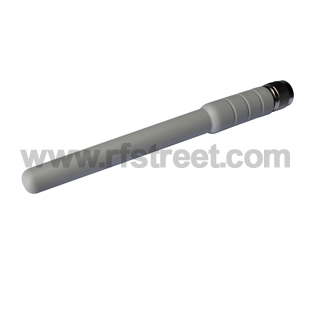

5dbi GSM Antenna 890-960/1710-1880MHz Vertical N male AP antenna

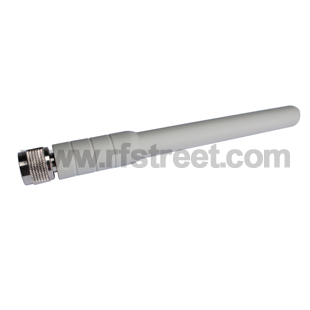

Model: GM2-2296-N01SP4-050
Description
Product parameters:
| Product Type: | Antenna | Input impedance: | 50 |
| Frequency Range: | 890-960/1710-1880MHz | V.S.W.R.: | ≤2 |
| Gain: | 5 dbi | Polarization: | Vertical |
| Bandwidth: | Directionality: | omnidirection | |
| Connector: | N male | Power: | 50 w |
| Antenna Dimension: | 20×178mm | Vertical panel Beam Width: | 360° |
| Weight: | 43g | vertical panel Beam Width: | 90° |
| feture: | Operating Temperature: | 40 to 85° |
AP Antenna is designed for the GSM/CDMAspread spectrum communication system.
After optimizing the design and tuning carefully, it has good VSWR.
The small dimension and light structure make it easy to install.
It also has good shockproof and anti-aging performance
The connectors / adapters we can offer you:
