GSM Antenna 7 dbi 1710-1990Mhz tilt-and-swivel SMA Plug
Model: GM2-834-S01SP4-070
    QTY 1+10+100+500+ More
    Price each. $7.00$6.30$5.67$5.10 Ask
    Saving% 0% 10%19%27% Ask
Description
Product parameters:
    Product Type: Antenna  Input impedance: 50
    Frequency Range: 1710-1990Mhz  V.S.W.R.: ≤2
    Gain: 7 dbi  Polarization: Vertical
    Bandwidth:   Directionality: omnidirection
    Connector: SMA male  Power: 50 w
    Antenna Length: 370mm  Vertical panel Beam Width: 360°
    Weight: 0.055kg  vertical panel Beam Width: 90°
    feture: Tilt and swivel design  Operating Temperature: 40 to 85°

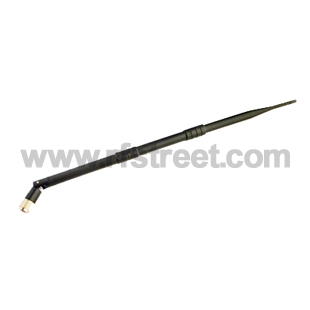

This compact GSM1800 GSM1900 omnidirectional "rubber-duck" GSM antenna provides broad coverage and 7dBi gain.



It is a coaxial sleeve design with an omni-directional pattern.



This antenna was also designed to transmit on the 900mhz frequencies with a top end transmission not to exceed 25 watts.Works for the current digital MOBIL systems.

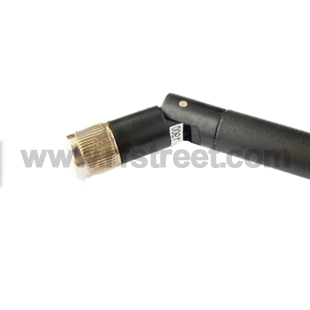

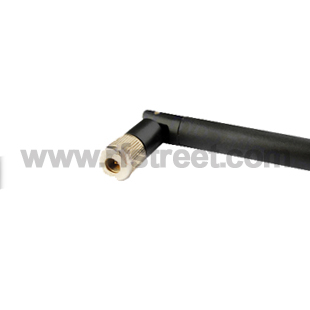

This flexible antenna features a tilt-and-swivel SMA male connector, allowing them to be used vertically,at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA male connectors including mobile, wireless pay phone, fixed commercial phone, PCMCIA card, navigation device, vehicle wireless device, etc.



The connectors / adapters we can offer you:
