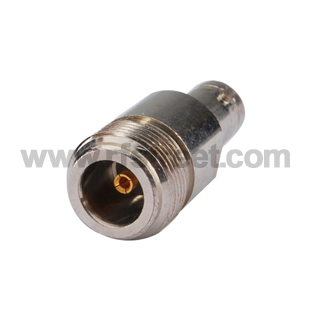

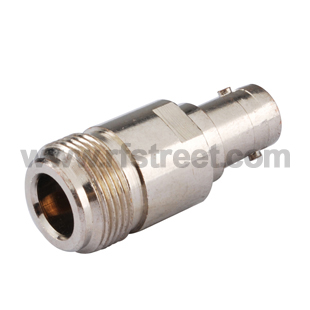

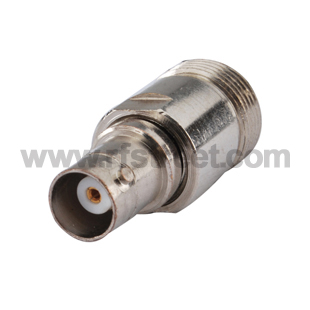

N-BNC RF Adapter N Jack to BNC Jack straight
Model: AD-B01SJ-N01SJ-44BS00
    QTY 1+10+100+500+ More
    Price each. $2.70$2.46$2.30$2.19 Ask
    Saving% 0% 9%15%19% Ask
Description
Product parameters:
    Product Type: Coaxial, RF Adapters  Impedance: 50 Ohm
    Series: Between Series N-BNC  Mounting Type: Free Hanging
    Convert From(Adapter End): N Jack  Body Plating: Nickelplated
    Convert To (Adapter End): BNC Jack  Contact Plating: Goldplated
    Style: straight  Connector material: Brass
    Operating Temperature: -55 °C to +155°C  Insulator: PTFE
    Frenquency Range: DC-3GHz  VSWR @ 1GHz: < 1.3:1
    IL @ 1GHz: < 0.20dB  :

RF adapters cost effective solution,which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.



RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.

Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or reverse polarity.



RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations.


RF adapters in standard and high performance with brass body .The stainless steel body will be customized !
