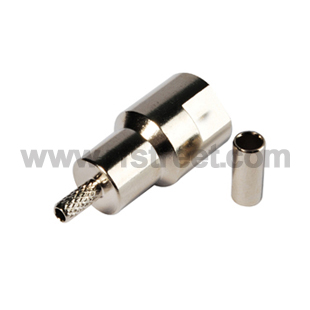

FME Crimp Plug RF coax connector for LMR100
Model: F02-SP316-41BS01
    QTY 1+10+100+500+ More
    Price each. $1.50$1.35$1.20$1.10 Ask
    Saving% 0% 10%20%27% Ask
Description
Product parameters:
    Product Series: FME  Product Type: Product Type
    Application: Crimp  Body Plating: Nickelplated
    Cable Type: RG174, RG178,RG316,LMR100  Body Termination: Solder
    Connector Body Style: Straight  Connector Material: Brass
    Gender: Plug  Contact Plating: Nickel
    Contact Termination: Solder  Temp.range: -65~ +165℃
    Impedance: 50 Ohm  :

FME series connectors, also known as nipple connectors, are miniature RF connectors that provide excellent electrical performance from DC-3Ghz. FME connectors operate at an impedance of 50ohms. FME connector male plugs house the contact pin , while the female jack houses the receptacle. FME connectors mate using a screw-lock mechanism.



Common applications for FME connectors include antenna connectors for mobile radio and other mobile applications in vehicles



TECHNICAL CHARACTERISTICS


Temp. Range----------------------- 65--+165 ℃(PE Cable -40--+85)
Vibration -----------------------------MIL-STD-202, Method 213
Impedance---------------------------50Ω
Frequency Range -----------------DC0--3GHz
Working Voltage --------------------500V max
Withstand Voltage ------------------1000V rms

Contact resistance
Center Contact-----------------------≤10 mΩ
Outer Contact------------------------ ≤5 mΩ
Insulation resistance-----------------≥ 5000 mΩ
VSWR-----------------------------------≤1.22
Durability(mating) ---------------------500(cycles)



MATERIAL & PLATING


Shell ------------------brass----------- -------------gold plated
Contact pin ----------brass -------------- gold plated
Socket --------------- beryllium --------------- gold plated
Elastic contact ----- beryllium-------gold plated
Insulator --------------PTFE
Crimp ferrule --------copper alloy --nickel or gold plated



APPLICABLE STANDARD


MIL-C-39012;
CECC 22110;
IEC 60169-15.



Offer custom:



If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
