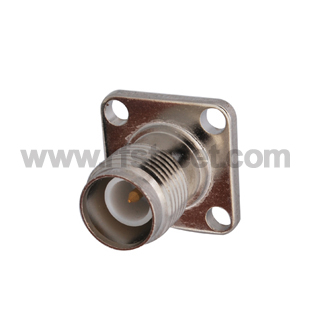

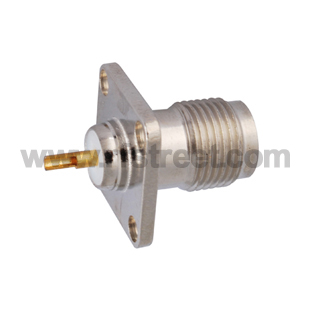

RP TNC 4 Hole Panel Mount Jack with solder cup RF Connector
Model: T02-FJHL4-41BS00
    QTY 500+ More
    Price each. $2.00 Ask
    Saving% 0% Ask
Description
Product parameters:
    Product Series: TNC  Product Type: 4 Hole Panel Mount
    Application: Clamp  Body Plating: Nickelplated
    Cable Type: Body Termination: Clamp
    Connector Body Style: Straight  Connector Material: Brass
    Contact Plating: Nickel  Contact Termination: Solder
    Gender: Jack (Male pin)  Impedance: 50 Ohm
    Insulator: PTFE  Temp.range: -55~ +155℃

TNC RF connectors are basically BNC connectors with threaded coupling and improved electrical performance at higher frequencies. TNC 50 ohm connectors provide repeatable electronic performance from DC to 11 GHz.  TNC 75 ohm connectors are suitable for applications up to 11 GHz. All 50 and 75 ohm connectors are intermatable. The TNC type connector is a weatherproof unit and with its threaded coupling ensures low noise and withstands shock and vibration.




TNC connectors are designed to conform to MIL-C-39012 CECC 22200 and IEC 60169-17 specifications.


Typical TNC series coaxial connector applications include airframe, missile, radar, cellular mobile phones, and precision electronic equipment industries.



TECHNICAL CHARACTERISTICS
Temp. range.................. .........-65~ +165℃
Vibration.............................MIL-STD-202, Method 213
Impedance.............................50 ohm / 75 ohm
Frequency Range ......................DC0-11GHz
Working Voltage...................... 500V max
Dielectric Withstand Voltage..........1500V rms

Contact resistance
Center Contact............... ...≤1.5mΩ
Outer Contact ...................≤0.2mΩ
Insulation resistance........ ...≥5000 mΩ
VSWR Straight................ ...≤1.22
Right angle .....................≤1.30
Durability(mating)............. .500 cycles



MATERIAL & PLATING
Shell ..................Brass..................nickel-plated
Contact pin .........Brass................. gold or silver-plated
Socket................ Beryllium ............gold or silver-plated
Elastic contact .....Beryllium............. gold-plated
Insulator............. PTFE
Crimp ferrule .......copper alloy........... nickel plated
O-ring sealing ......6146 silastic



APPLICABLE STANDARD
MIL-C-39012;
CECC 22200;
IEC 60169-17.



Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
