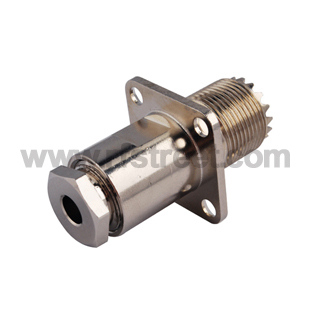

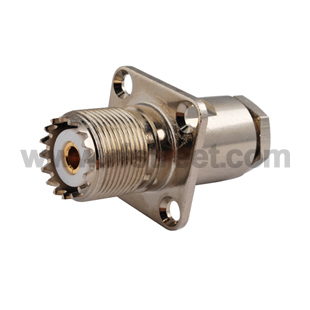

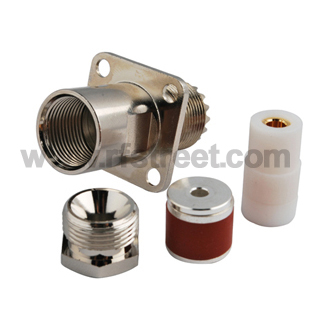

UHF Clamp Jack with flange / Panel mount RF Connector for LMR195
Model: U01-FJL19HL4-41BS01
    QTY 1+10+100+1000+ More
    Price each. $5.00$4.50$4.25$3.85 Ask
    Saving% 0% 10%15%23% Ask
Description
Product parameters:
    Product Series: UHF  Product Type: Cable mount
    UHF version: Metric Version  Attachment/Affixment: Flange /Panel
    Cable Type: RG58, RG400,RG142,LMR195  Body Plating: Nickelplated
    Connector Body Style: Straight  Connector Material: Brass
    Body Termination: Clamp  Contact Plating: Goldplated
    Gender: Jack  Impedance: 50 Ohm
    Contact Termination: Solder  Temp.range: -55~ +155℃
    Insulator: PTFE  :

UHF coaxial RF connectors were one of the first RF connector series to be developed.. The 5/8"-24 thread coupling and clamp, crimp, twist-on, and solder terminations give the UHF the flexibility that has kept it one of the most popular coaxial connectors over the years.

Among the many applications of this low cost, low frequency device are antenna connections for CB radios, public address systems, audio, video, mobile radio, and test equipment.



Technical characteristics
Temp. range................-40~+85 ℃
Impedance.................50 Ω
Frequency Range...........DC 0-2.5GHz
Working Voltage...........750V
Dielectric Withstand Voltage........ 1,000 Vrms (at sea level)

Contact resistance
Center Contact............≤5mΩ
Outer Contact.............≤5mΩ
Insulation resistance ....≤5000mΩ
Durability(mating)........ 500 (cycles)



MATERIAL & PLATING
Shell ..............brass ...............nickel-plated
Contact pin ........brass..............gold plated
Socket............. beryllium.......... gold plated
insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated



APPLECABLE STANDARD
IEC 60169-12;
GB/T 15888.



Offer custom:

If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
