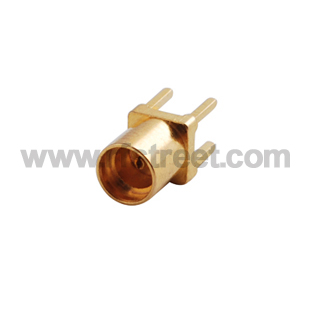

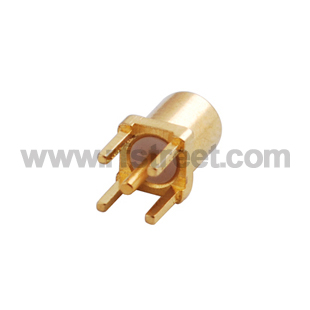

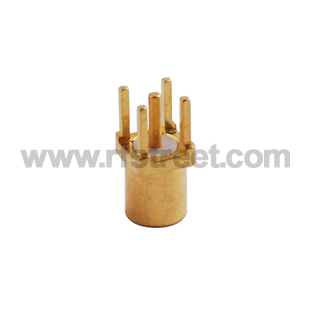

RF Connector MMCX thru hole Jack PCB Mount with solder post
Model: M01-SJPT4-11BS00
    QTY 1+10+100+500+1000+ More
    Price each. $1.20$1.08$0.96$0.87 $0.78 Ask
    Saving% 0% 10%20%28%35% Ask
Description
Product parameters:
    Product Series: MMCX  Product Type: Thru Hole PCB Mount
    Application: Crimp  Body Plating: Goldplated
    Cable Type: Body Termination: Crimp
    Connector Body Style: Straight  Connector Material: Brass
    Contact Plating: Gold  Contact Termination: Solder
    Gender: Jack  Impedance: 50 Ohm
    Insulator: PTFE  Temp.range: -55~ +155℃

MMCX micro-miniature RF connectors are suitable for 50 ohm applications and provide repeatable electronic performance from DC to 6 GHz. The snap-on mating design offers low RF leakage and ease of assembly in dense packaging layouts.

Due to their non-slotted contact , their series connectors can provide a low R.F leakage in R.F circuits & in space critical applications. MMCX type connectors are light weight, compact and reliable.



MCX type connectors enable space reduction over similar SMB/SMC types. MCX connectors are designed to conform to CECC 22220 specifications.



Typical applications for MMCX connectors are PCMCIA cards and other small hand-held communications devices.



Technical characteristics
Temp. range....................-55~ +155℃
Impedance.................... ....50Ω
Frequency Range...............DC~6GHz
Working Voltage...............170V max
Withstand Voltage.............500V rms

Contact resistance
Center Contact................≤5mΩ
Outer Contact.................≤2.5mΩ
Insulation resistance.........≥1000 mΩ
VSWR Straight.................≤1.15
Right angle...................≤1.25
Durability(mating)............ 500 (cycles)



MATERIAL & PLATING
Shell.......................Brass ............ ...........goldplated
Inner conductor............ Beryllium or tin brass....... goldplated
Insulator...................PTFE
Crimping suite..............Copper alloy............ .....nicked or goldplated





APPLECABLE STANDARD
CECC 22340





Offer custom:

If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
