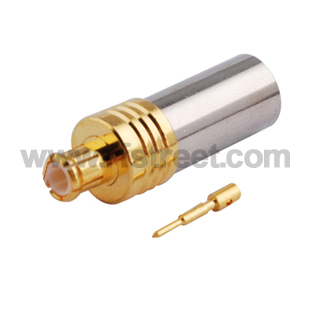

MCX Crimp Plug RF Connector for LMR195/RG58/RG142
Model: M03-SPL19-11BS00
    QTY 1+10+100+500+ More
    Price each. $1.89$1.80$1.70$1.53 Ask
    Saving% 0% 5%10%19% Ask
Description
Product parameters:
    Product Series: MCX  Product Type: Cable mount
    Application: Crimp  Body Plating: Goldplated
    Cable Type: LMR195,RG58,RG142  Body Termination: Crimp
    Connector Body Style: Straight  Connector Material: Brass
    Contact Plating: Gold  Contact Termination: Solder
    Gender: Plug  Impedance: 50 Ohm
    Insulator: PTFE  Temp.range: -65~ +165℃

MCX micro-miniature RF connectors are suitable for 50 ohm applications an provide repeatable performance from DC to 6GHz. The snap on coupling feature allows ease of assembly in dense packaging layouts. The design of the connector encompasses the need for size reduction, low weight, durability, and reliable performance, which are required in RF circuits of mobile and fixed communication system.



MCX type connectors enable a 30% space reduction over similar SMB/SMC types. MCX connectors are designed to conform to CECC 22220 specifications.



Typical applications for MCX connectors include GPS, wireless communications and automotive.


Technical  Characteristics
Temp. range...................... -65~ +165℃
Impedance........................50Î ohm / 75 ohm
Frequency Range..................DC 0-6GHz (50ohm) / 0-1.5GHz (75ohm)
Working Voltage..................250V (50Ω)? 170V (75Ω)
Withstand Voltage................750V (50Ω)? 250V (75Ω)



Contact resistance
Center Contact...................≤5mΩ
Outer Contact....................≤2.5mΩ
Insulation resistance............≥1000mΩ
VSWR Straight....................≤1.2(50ohm) / ≤1.35 (75ohm)
Durability(mating)...............500 (cycles)



MATERIAL & PLATING
Shell .............. .. .. .. ...Brass ...............Gold-plated
Contact pin .. . ...... .....Brass................Gold -plated
Socket............. .. .. .. .. Beryllium...........Gold -plated
Elastic contact.... .. .. .. Beryllium...........Gold -plated
Insulator ..........PTFE
Crimping suite..... copper alloy......... nickel or gold-plated



APPLECABLE STANDARD
MCECC 22220;
IEC 61169-3.




Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
