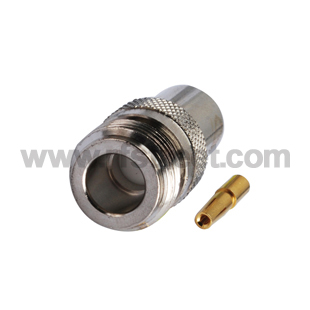

RF Connector N Crimp Jack for LMR400
Model: N01-SJL40-41BS00
    QTY 1+10+100+500+1000+ More
    Price each. $2.50$2.38$2.25$2.15 $2.04 Ask
    Saving% 0% 5%10%14%18% Ask
Description
Product parameters:
    Product Series: Product Type: Cable mount
    Attachment/Affixment: Application: Crimp
    Cable Type: RG214,RG213,RG8,LMR400  Body Termination: Crimp
    Connector Body Style: Straight  Body Plating: Nickelplated
    Gender: Jack  Connector Material: Brass
    Contact Plating: Nickel  Contact Termination: Solder
    Impedance: 50 Ohm  Temp.range: -65~ +165℃

N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standard used with coaxial cables from .350" to .450" OD, but designs can also accommodate  .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration.  N connectors are designed to conform to MIL-STD-348A-304,IEC60169-16 and CECC22210 specifications.



The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.


Technical characteristics
Temp.range................................. -65~ +165℃(PE Cable)
Vibration...................................... MIL-STD-202, MethoD 213
Impedance ................................... 50 ohm
Frequency Range...........................DC 0-11GHz
Working Voltage ...........................1000V max
Withstand Voltage..........................1500V rms
Contact resistance
Center Contact ............................. ≤1 mΩ
Outer Contact ............................... ≤0.2 mΩ
Insulation resistance.......................≥5000 mΩ
VSWR............................ ..... .......... ≤ 1.30
Durability(mating).............................500 (cycles)


MATERIAL & PLATING
Shell................... Brass ....................nickel-plated
contact pin.......... Brass ....................gold-plated
Elastic contact..... beryllium................ gold-plated
Socket.............. beryllium or tin brass ...gold-plated
Insulator............... PTFE
Crimping suite....... copper alloy............. nicked or gold-plated
o-ring sealing ........6146 silastic


APPLECABLE STANDARD
MIL-C-39012;
CECC 22210;
IEC 60169-16







Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
