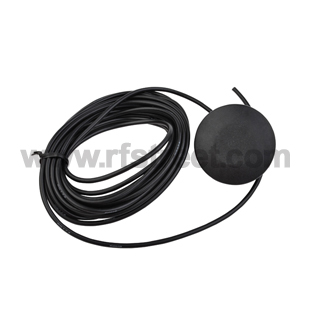

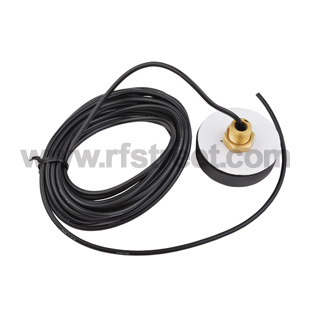

GPS Active Antenna with TNC male for GPS receivers/systems
Model: GA06-300-T01SP
    QTY 1+10+50+100+ More
    Price each. $10.00$9.10$8.29$7.56 Ask
    Saving% 0% 9%17%24% Ask
Product parameters:
    Product Type: GPS Antenna  V.S.W.R: 1.5:1
    Center Frequency: 11575.42MHz±3 MHz  Band Width: ±5 MHz
    Cable: RG174  Impendence: 50 ohm
    Cable length: 3M  Mounting: Magnetic base

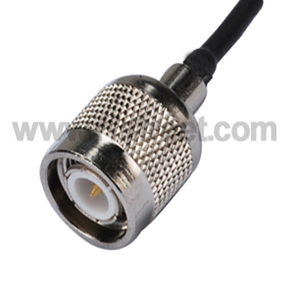

    Connector: TNC male  Housing: Black


(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP


(ii) LNA/Filter
LNA Gain (Without cable) 13dB/26dB/28dB/other Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max

Weight <100gram
Antenna Size:Size 46(D)*15(H)mm
Cable :RG174 3 meter / contact us for other length
Connector :TNC male straight default  BNC/SMB/SMC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC please give us some notes if the antenna connector is chosen.Tks!
Housing Black


Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
